ESP Insulators

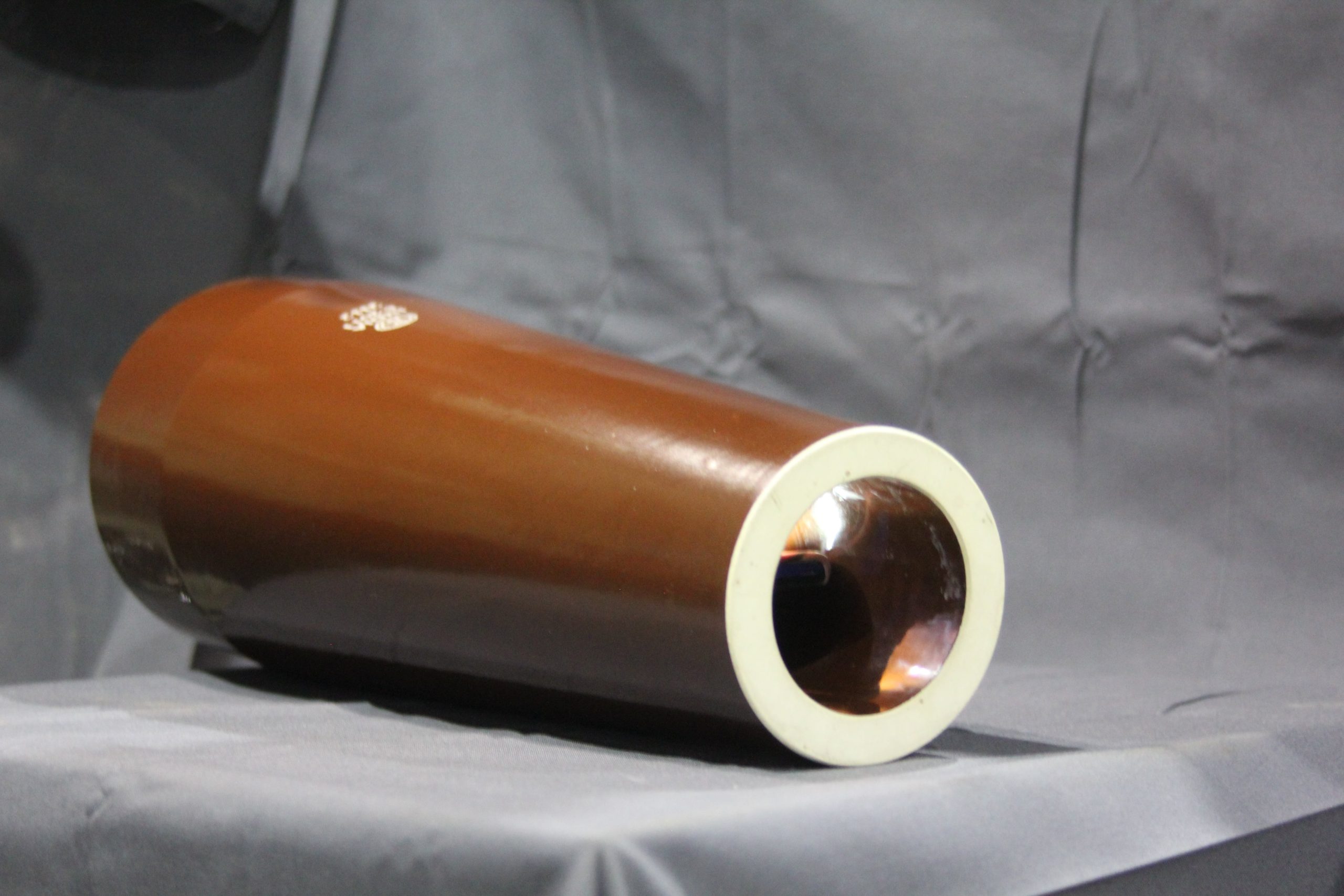

At our core, we are ceramists, dedicated specialists with a deep focus on the development, manufacture, and supply of insulators for a wide range of applications, including electrostatic precipitators, substations, and industrial settings. Our commitment to excellence is exemplified by our state-of-the-art and highly automated manufacturing process.

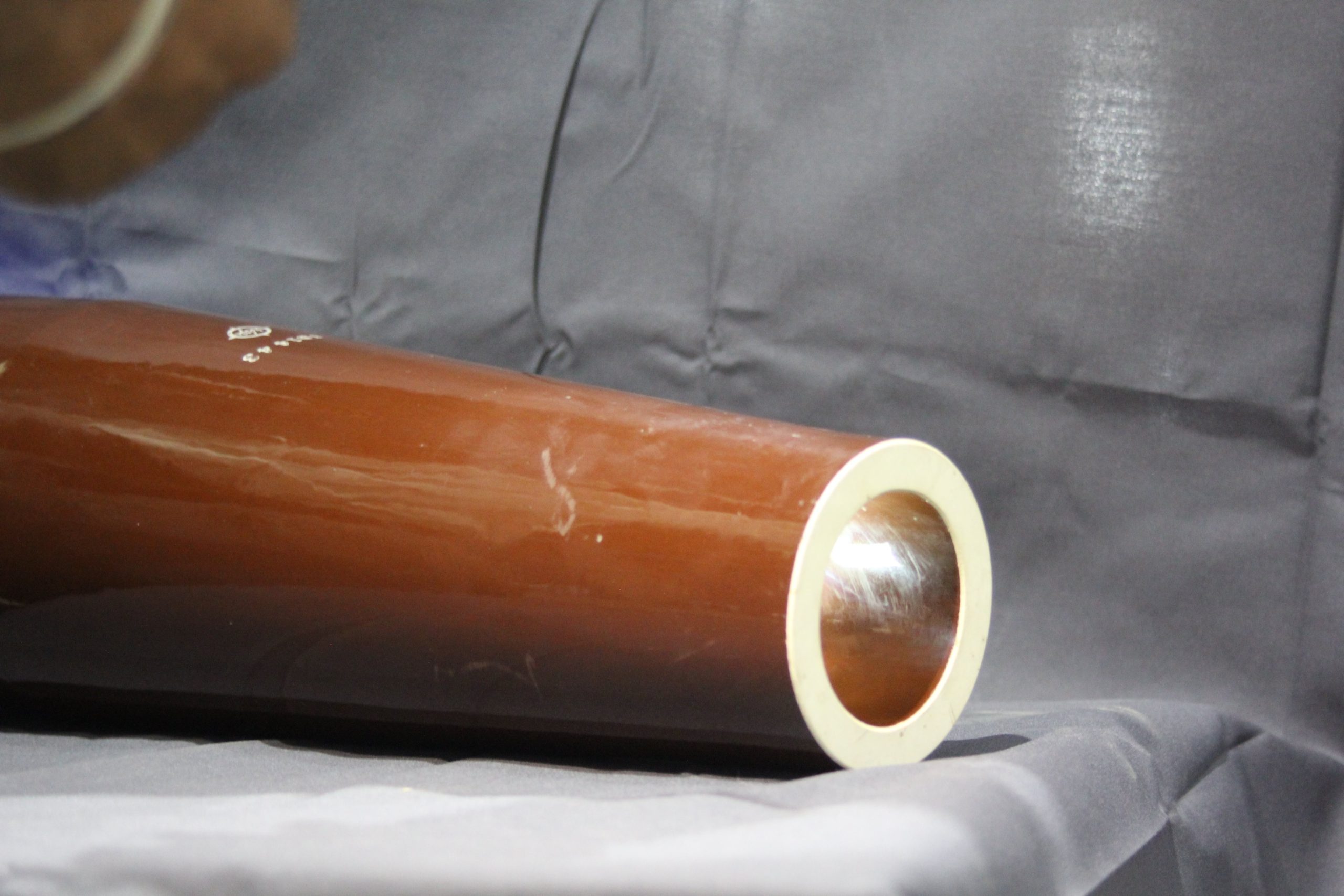

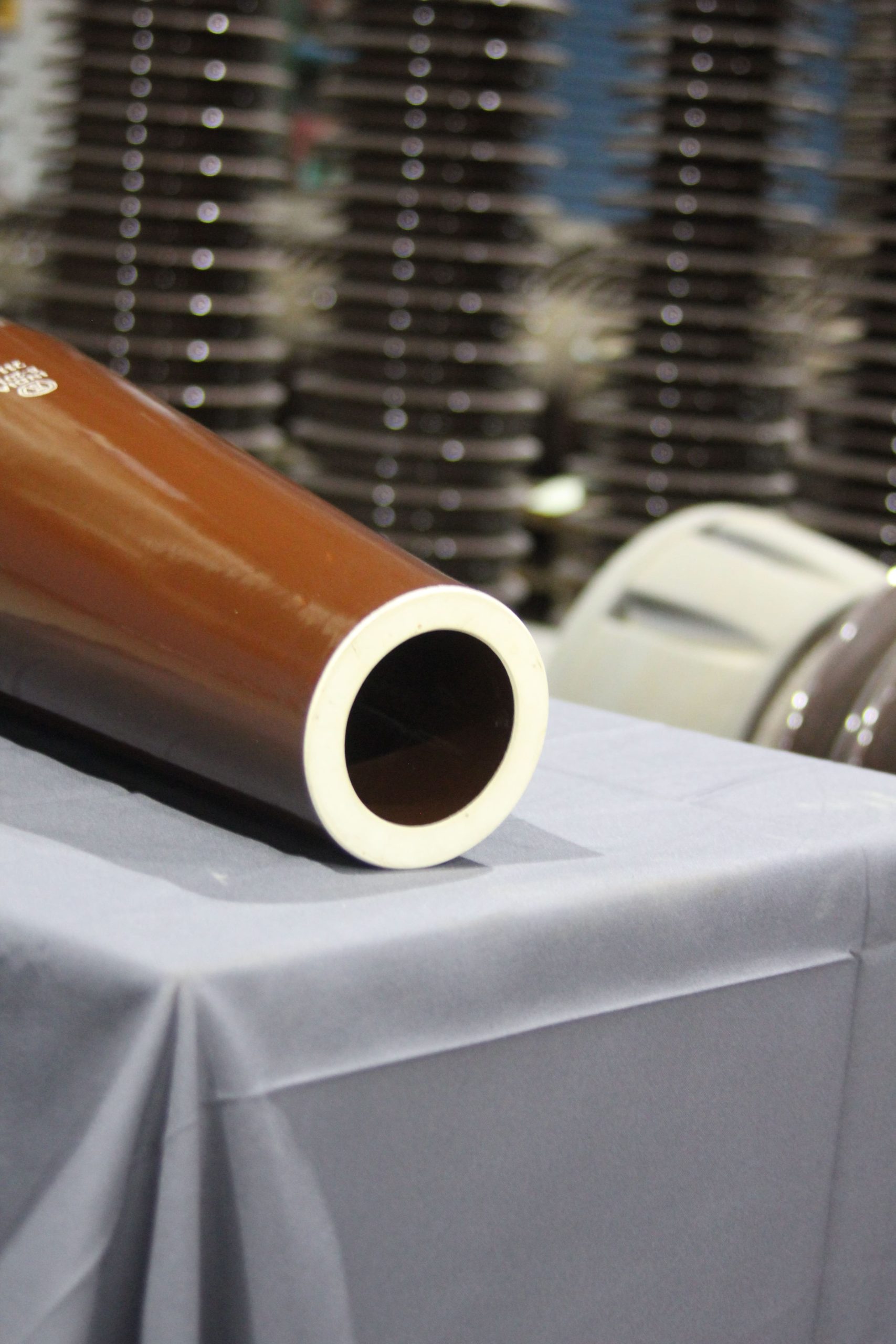

At Winwin Speciality Insulators (WSI), we are producing and supplying insulators designed for Electrostatic Precipitators (ESPs) used in various industrial applications such as Power plants, Paper mills and Cement industries etc. These insulators are made from special ceramic materials capable of withstanding high DC voltages ranging from  50 kV to 150 kV and operating temperatures between 150°C and 400°C continuously.

Function

The primary purpose of these insulators is to provide electrical insulation between the housing of the ESP and the high DC voltage of 50 kV to 150 kV, applied within the ESP. This insulation is essential to prevent electrical discharge or arcing between the high-voltage components and the grounded housing.

Voltage Range

The insulators are designed to withstand a wide range of DC voltages, from 50 kV to 150 kV. This flexibility allows them to be used in different ESP setups, accommodating various voltage requirements in industrial applications.

Materials

These insulators are made from special ceramic materials. Ceramic materials are known for their excellent electrical insulation properties and resistance to high temperatures. The specific composition and properties of the ceramic material used are crucial to ensure reliable insulation under the given voltage and temperature conditions.

Temperature Range

Operating within a temperature range of 150°C to 400°C continuously is a significant challenge. The insulators need to maintain their structural integrity and insulation properties even under extreme heat. The choice of ceramic material and the design of the insulator are critical in achieving this.

Application

These insulators are used in ESPs, which are devices employed to remove particulate matter (dust and particles) from exhaust fumes produced by industries such as power generation, paper mills, and cement manufacturing etc. The high-voltage DC field is used to charge and collect the particles on electrode plates within the ESP.

Safety

Ensuring the insulation of high-voltage components in ESPs is crucial for the safety of the equipment and personnel. Properly designed and manufactured insulators are essential to prevent electrical breakdowns and maintain the efficiency of the ESP.

WSI ESP Insulators Range

ANSI Reference Number Units WS-ESP 10210 WS-ESP 16510 WS-ESP 05810 WS-ESP 04610 WS-ESP 00710 WS-ESP 12110 WS-ESP 03710 WS-ESP 11510
Height mm 787 610 610 550 500 450 400 370
Inside Dia mm 355 442 305 340 356 275 380 350
Outer Dia mm 431 500 355 400 400 328 460 410
Designation Units WS-ESP 00210 WS-ESP 00220 WS-ESP 05510 WS-ESP 11610 WS-ESP 00010 WS-ESP 09910 WS-ESP 14410 WS-ESP 09210
Height mm 700 660 600 540 500 475 400 370
Inside Dia Top mm 264 264 350 320 227 235 250 290
Outer Dia mm 211 211 300 270 175 170 200 190
Inside Dia Bottom mm 376 370 550 500 422 430 350 480
Outer Dia mm 324 310 500 450 370 365 300 380
